SmartphoneGrip
With the SmartphoneGrip on the handlebar, you can turn your smartphone into an eBike display: While your smartphone is charging wirelessly, the eBike Flow app can be relied upon to guide you to your destination whilst also showing all important ride data. Whether you're riding on paved roads or dirt tracks, the SmartphoneGrip holds your smartphone firmly on the handlebar. At the same time, you can conveniently operate the eBike Flow app via your LED Remote or MiniRemote.
- Product description
- Technical details
- Compatibility
- Assembly effort
Assembly effort
Plug&Play: the product can be put into operation without any installation.
Simple installation: the product needs minimal effort to install, for example it might just need to be screwed into place.
More significant installation required: for example cables may need to be laid and connected.
Safe operation on the road
While riding, you control the eBike Flow app via the LED Remote, which is connected to your smartphone via Bluetooth: With the "right" and "left" buttons, for example, you can easily switch between ride screen and navigation without taking your hand from the handlebar. This means that you can ride more safely while also maintaining full control of the display and your eBike. The navigation function reliably takes you to your destination with its clear map display and information on arrival time and distance.
Secure grip
On paved roads or surfaced forest and field paths*, the SmartphoneGrip holds the smartphone securely on the handlebar. The innovative and robust mount is suitable for all common smartphones with and without a case.** The back of your smartphone is protected by a rubberised surface; the charging socket and speakers are freely accessible.
* The SmartphoneGrip is not suitable for steps with a height of over 15 cm or for jumps.
** The supported dimensions of the smartphones used incl. camera bump and case are as follows: H: 6.8 –13 mm, W: 67 - 88 mm, L: 123 – 175 mm. Suitable for smartphones up to a total weight of 276 g incl. case. Flip covers and wallet cases are not supported.
Fast switching between different displays
Full modularity and free choice between displays: You can use your smartphone with the SmartphoneGrip or fix the Kiox 300 to the display mount ***. Kiox 300 is suitable for sporty use, while your smartphone is the ideal display for more relaxed rides, for example, through the city.
***The modular display mount is required in order to use the SmartphoneGrip. Please note that there are two different handlebar diameters (31.8mm and 35mm).
If you already have a Bosch display from the smart system installed (e.g. Kiox 300 display), a simple exchange is possible.
Informative charge display
On the left side of the SmartphoneGrip is an LED that indicates whether and how your smartphone is charging by means of different colours and light patterns. For example, if the LED is yellow, your smartphone is charging inductively using wireless technology.
Individual positioning
Attach the SmartphoneGrip to the handlebar near the stem, where you have the best view of the display or where it seems best to you in terms of look and feel. Depending on where you want to position the SmartphoneGrip, different display interfaces are used.
How To Video
By playing the video, data is transmitted to Google Ireland Limited. For further information on processing, please see Google's Privacy Policy.
| Smartphone Plattform | iPhone / Android |
|---|---|
| Smartphone size (including case) | H: 6,8 – 13 mm, B: 67 – 88 mm, L: 123 – 175 mm* |
| Smartphone weight (including case) | maximum 276g |
| Installation | Place on display mount and snap into place** |
| Smartphone charging function | Inductive, or via micro-USB to micro-USB, micro-USB to lightning connector, micro-USB to USB-C adaptor cable |
| Charging power via USB port | 5 W (1 A@5 V) |
| Inductive charging power | 7.5 W (1.5 A@5 V), efficiency > 67%. |
| Operating temperature | -5 - 40 degrees Celsius |
| Storage temperature | 10 - 40 degrees Celsius |
| Type of protection | IP54 |
| Colour | Matt Black |
| Weight, approx. | 75 g |
| Dimensions (WxHxD) | 65.2mm x 75.8mm x 32.9mm |
*Dimensions of the smartphones used including camera set-up and case. Flip covers and wallet cases are not supported.
**The modular display mount is required in order to use the SmartphoneGrip. Please note that there are two different handlebar diameters (31.8mm and 35mm).
If you already have a Bosch display from the smart system installed (e.g. Kiox 300 display), a simple exchange is possible.
Safety information: The SmartphoneGrip is not suitable for steps with a height of over 15cm, or for jumps.
Explore product combinations
Which app goes with which battery, Which eBike motor matches which display? The overview of product combinations indicates the compatibilities between all Bosch eBike components.
To the product combinations
eBike Flow app
The eBike Flow app connects you to your eBike – and your eBike to the digital world. You use the app to control all the functions of the smart system, which connects the Drive Unit, battery, and Control Unit. It allows you to customize the eBike exactly to your preferences, enhance it, and keep it up to date. You simply download new features and services. You can conveniently install updates for your eBike via Bluetooth. This keeps your eBike up to date and continuously upgraded with new functions. This is how you can take your riding enjoyment to even higher levels.
Learn more
The smart system
The smart system - consisting of eBike Flow app, control unit, display, battery and drive unit - turns your eBike ride into an individual experience. The new system generation combines technically high-quality eBike components with ever new digital functions, which you can easily install over-the-air using the eBike Flow app. This way, you can always keep your eBike up to date and adapt it exactly to your requirements - for even more riding fun in a networked eBike world.
Learn more

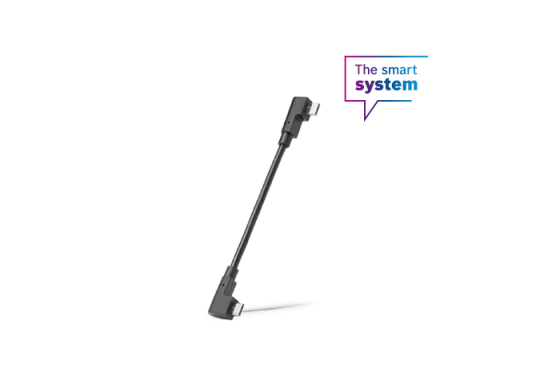

Micro-USB adaptor cable for SmartphoneGrip
